Description
Article no.: BFS-1227-000

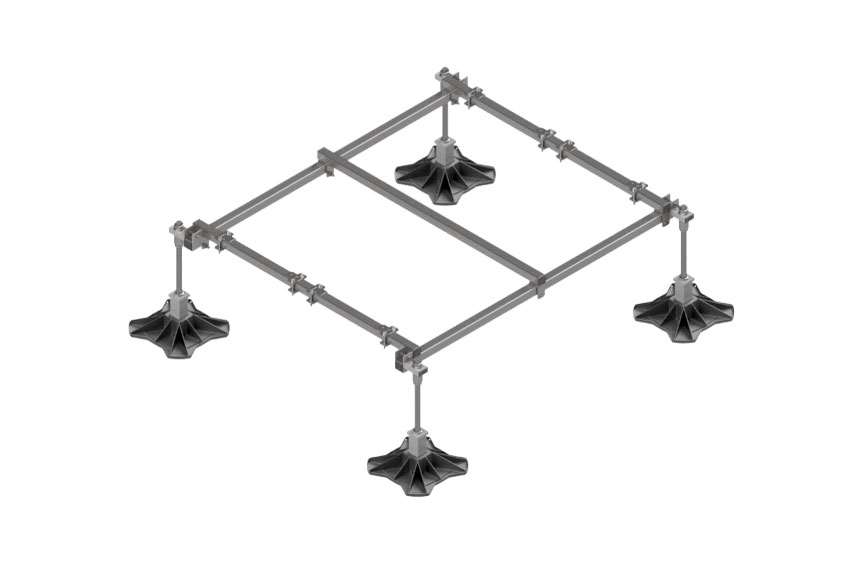

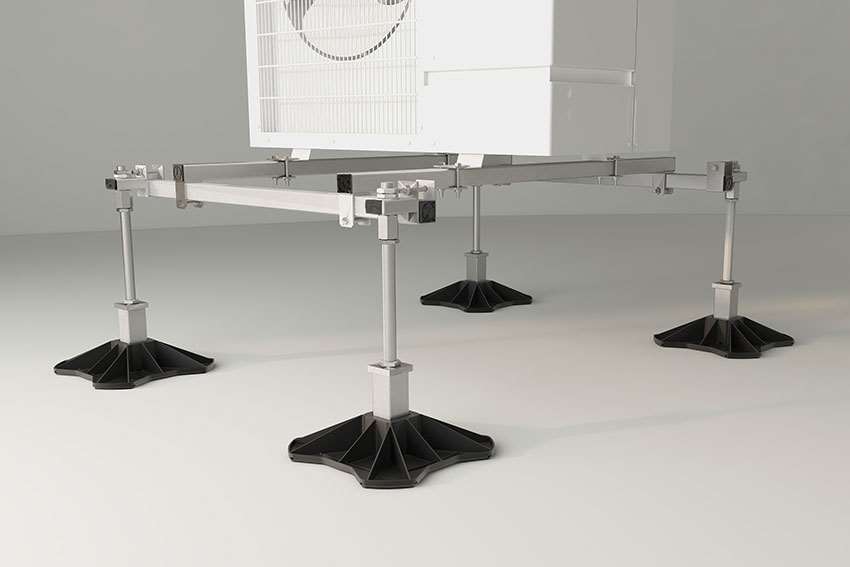

Big Foot Multi Frame XL 1500 × 1200 mm (BFS-1227-000) is an extra large and stable mounting frame for the safe installation of HVAC equipment, heat pumps, chillers and ventilation units on roofs. The robust construction makes the stand ideal for larger or heavier installations.
The frame is made of hot-dip galvanized steel for high durability and corrosion resistance. The system comes with 4 x 330 × 330 mm feet in fiberglass reinforced nylon with EPDM mat that protects the ceiling surface and provides stable mounting. The adjustable height makes it easy to adapt the stand to the surface.
The modular design also allows the frame to be extended with extensions to adapt the size and configuration to the needs of the installation.
Product information

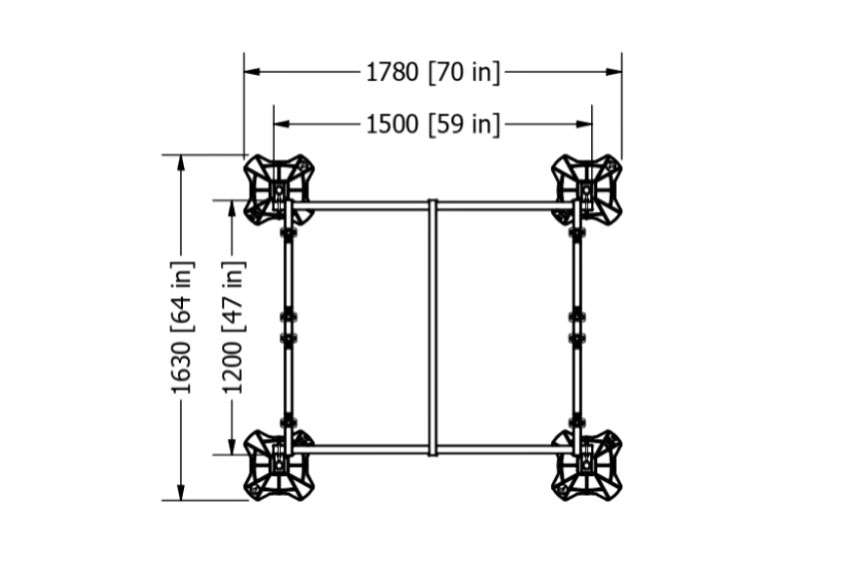

- Dimensions: 1500 × 1200 mm
- Article number: BFS-1227-000
- Feet: 4 × 330 mm
- Height adjustment: 330-610 mm
- Max load: 500 kg
- Material: Hot-dip galvanized steel
A robust and flexible solution for professional HVAC installations on roofs.
